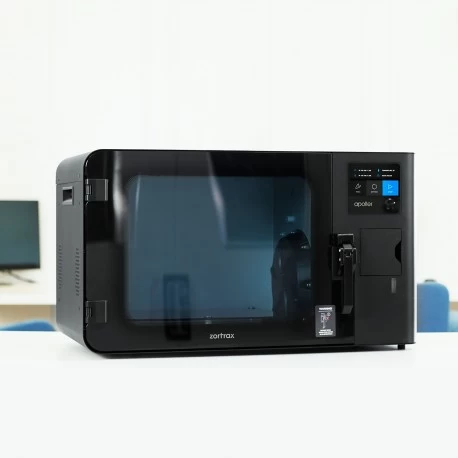

Zortrax Apoller

Zortrax Zortrax

På Fjernlager

23670

49 375,00 DKK

inkl. moms

A smart vapor smoothing device.

Device features:

  • 300x250x250 mm smoothing chamber
  • Zortrax SVS technology
  • MEK and acetone compatibility
  • Intuitive touch interface
  • Wi-Fi and Ethernet connectivity
  • Compatibility with Z-ABS, Z-ULTRAT, Z-ULTRAT Plus, Z-ASA Pro, and Z-HIPS
  • Compatibility with external materials including ABS, ASA, and HIPS
  • Advanced vapor circulation system
  • ATEX compliant safety systems

A smart and safe device for automated vapor smoothing

Zortrax Apoller is a smart vapor smoothing device that automatically removes visible layering from FDM 3D prints. It works works with both acetone and MEK. The smoothing process is fully automated and run by proprietary algorithms managing temperature, pressure, and concentration of solvent's vapors at all times. First, the model has to be placed inside the smoothing chamber. Once this is done, the chamber is heated enough to vaporize the solvent deposited in a sink below the glass tray. Vapors are then circulated spiraling upwards to evenly cover the model. Solvent's vapors condensate on surfaces leaving them with a glossy or mat finish, depending on the filament used. Finally, Zortrax Apoller dries the prints out to make them ready to use straight out of the chamber. Combined weekly output of 4 typical FDM 3D printers can be automatically smoothed within one day. Safety systems have been designed to meet the high standards required by the ATEX 2014/34/EU Directive regulating the equipment intended for explosive atmospheres.

Compatible filaments: ABS, ASA, HIPS

Compatible solvents: Acetone, Butanone (MEK)

Compatible Zortrax filaments: Z-ABS, Z-HIPS, Z-ULTRAT, Z-ULTRAT Plus, Z-ASA Pro

Mærke Zortrax
Zortrax / Zortrax / Zortrax / Zortrax / Zortrax / Zortrax / Zortrax / Zortrax / Zortrax / Zortrax / Zortrax / Zortrax / Zortrax / Zortrax /

Skriv bedømmelse

Zortrax Apoller

Zortrax Apoller

Skriv bedømmelse

Weight and physical dimensions
Device (W x D x H) 671 x 396 x 388 mm (26.4 x 15.6 x 15.3 in)
Internal dimensions 340 x 270 x 260 mm (13.4 x 10.6 x 10.2 in)
Device weight 30 kg (66 lb)

Process
Maximum working temperature 90° C (194° F)
Minimum working temperature -20° C (-4° F)
Minimum absolute working pressure 0.4 bar
Ambient operation temperature 15 - 30° C (59 - 86° F)
Storage temperature 0 - 35° C (32 - 95° F)

Electrical
AC input 110 V ~ 13.6 A 50/60 Hz
Power supply parameters 24 V DC @ 14 A, 500 W
Maximum power consumption 1500 W

Device
Build volume 300 x 250 x 250 mm (11.8 x 9.8 x 9.8 in)
Connectivity Wi-Fi, Ethernet, USB
Operating system Android
Processor Quad Core
Touchscreen 4'' IPS 800 x 480
Solvent compatibility Aceton, MEK
Available materials Z-ABS, Z-ULTRAT, Z-ULTRAT Plus, Z-ASA Pro, Z-HIPS
