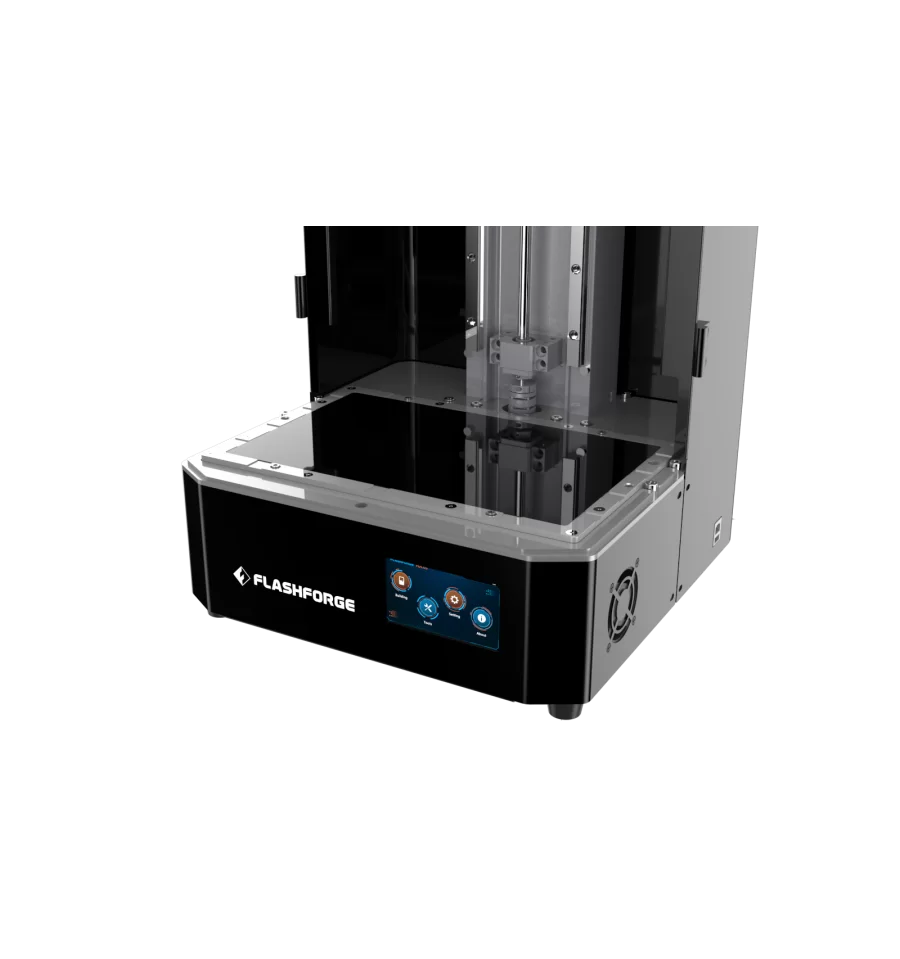

Flashforge Foto 13.3 LCD Resin Printer

Flashforge Flashforge

26520

Foto 13.3 is a new high-performance resin printer from one of the best-known manufacturers – Flashforge. With a new parallel UV lightning source, 4K monochrome LCD and a very high build quality, the Foto 13,3 is certainly a printer to consider
  • 13,3” 4K monochrome masking screen
  • Print volume 19L

Flere detaljer

På lager

22.695,00 DKK

inkl. moms

Køb for 750,00 DKK mere for at få fri fragt

Flashforge Foto 13.3 LCD Resin printer

The printing size is 4 times larger than other LCD printers.

Superior Printing Performance

The Z-axis is supported by dual-linear ball screw which dramatically improves stability while in motion and reduces the risk of layer shifting, whereas layers are frequently shown in the models printed by common rod motor.

High precision

For prototype designers and makers, the printed segmentation model can be assembled without polishing, which improves the iterative soeed of product update; while for ther printers, it takes at least 1/4 extra time for surface polishing.For service providers and factories, it’s now possible to batch print and deliver high-accuracy products such as jewelry and replacement parts to customers directly. The printed hair ornament model can be inlaid with diamonds after painting.

Fast Print Speed

With 4K monochrome screen, the exposure time is reduced to 1/3 compared to other LCD printers.Large-size LCD printer offers industrial designers and makers new possibilities, and improves the production efficiency of service providers and factories. Firstly, compared to similar printers with surface exposure molding technology, the output of full page models is doubled; secondly, compared to other SLA printers with similar size, the printing time is reduced to 1/3 at least.

Easy Maintenance

The projection screen is designed with a quick disassembling module. To eplace the screen, it only takes a few steps to install screws and connect the cables, which is easy and convenient. Compared with layer-by-layer disassembly and assembly of other common equipment, the working time is reduced by 2/3, and users will face less difficulty and risk in screen replacement. With the specially-treated industrial screen which is resistant to scratch and collision, and equipped with the efficient cooling system Flashforge eveloped, its probability of heavy damage is brought down by approximately 80%, and its service life is increased by 20%.

With the specially-treated industrial screen which is resistant to scratch and collision, and equipped with the efficient cooling system Flashforge eveloped, its probability of heavy damage is brought down by approximately 80%, and its service life is increased by 20%.

Better Print Experience

Resin includes basic resin, toughened resin and waterwashed resin. Less smell and more easiness when used. Base resin has detailed performance, low shrinkage and is easy to colour. Toughened resin has impressive texture and law shrinkage, and can be produced in batch. Waterwashed resin has high strength and heat resistance, and is not easy to crack. Environmentally-friendly designed, it can be properly cleaned by water. In addition to being widely applied in prototype design and education, baking varnish can also be appliedto beautify the product.

Technical Details
Resin Print Technology UV LCD
Resin UV Wavelength 405 nm
Resin Display Type monochrome LCD
Resin Display Resolution 76 µm
Recomended Printing Speed Max 30 mm/h (depends on material))
Build Area 292 mm x 165 mm x 400 mm
Installation Space / Requirements
Total Mass Overall Dimensions 380 mm x 380 mm x 685 mm
Max Power Consumption 150 W
Voltage AC: V
Equipment
Touch Screen Yes
Connection
USB Port Yes
Ethernet Port Yes
Accuracy
Layer Height 0.05 - 0.15 mm
Shipping
