Hver LGX™-ekstruder leveres med:
- 1x LGX™ feeder;
- 1x Custom LDO Nema17 25mm pandekage stepmotor
- (med PH-06AWJ stik);
- 1x Bowden Interface-stik (med metal-skubpasning med gevind);
- 1x Direct Drive Interface Plug (til Slice Engineering hotends);
- 1x 2 mm sekskantnøgle (anbefalet værktøj);
- 1x produktlinjeinformationsbrochure;
- 1x Powered By Bondtech-klistermærke.
Sendes nu også med ekstra tilbehør:
- 3x M3x30 mm skruer med lavt hoved;
- 4x M3x18 mm tap med 5 mm sekskant med M3x4 gevind;
- 30 mm PTFE-rør til brug i Direct Drive Interface Plug.
På lager online & butik
EXT-LGX

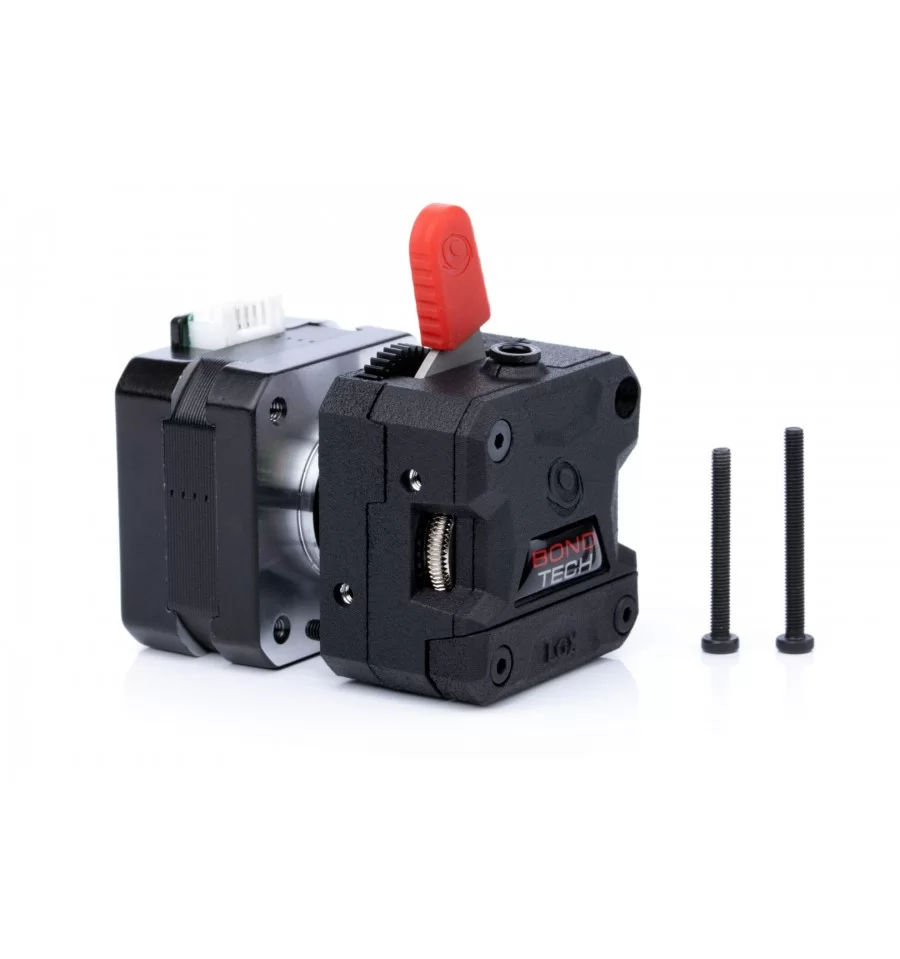

The Bondtech LGX™ Large Gears eXtruder is the first of our filament feeders using Bondtech’s new Dual Drive Technology based on larger drive gears.
7 new features on a Bondtech eXtruder:
- Larger drive wheels, for increased filament grip;
- Filament pre-tension lever, for repeated results;
- Multi-function interface socket, for tool or application quick swap;
- Drive wheels’ maintenance windows, for easy cleaning;
- Compact, light & symmetric design, for increased performance and compatibility;
- Multiple mounting hole patterns, for easy and flexible setup;
- A small step for a greener Future, craft boxes without bleaching & no coating.
You can read more about the new features by clicking here.
3D Printed Housing using PA12
The housing parts are professionally printed with nylon for maximum strength and precision and higher temperature resistance.
Extruder and Stepper Motor go together
Preferably, you should always use the extruder attached to the stepper motor when you mount it on a printer.
If you need to put a plate in between the stepper motor and the extruder please notice that you need longer screws, and the max supported thickness is 3mm.
This image below shows what screws are used on the LGX, and the red ones are used to attach the stepper motor and extruder:
To use a plate in between the stepper motor and the extruder, you need to replace the stock M3x27 low head screws with the 3 M3x30 low head screws we send in the accessories bag, which are compatible with printer plates of thicknesses between 2 and 3mm. - Don’t use a plate in between without using the longer screws.
