CreatBot D600 Pro

Creatbot Creatbot

3D-print med CreatBot D600 Pro meget store og komplekse dele og objekter. D600 Pro er en industriel højtemperatur 3D-printer med en meget høj produktionskvalitet og enormt stort opvarmet installationsrum (60x60x60 cm). Brug det til at producere højkvalitets og sofistikerede komponenter additiv.

De vigtigste funktioner i CreatBot D600 Pro 3D-printeren:

  • Ekstruder, der kan opvarmes til 350 ° C, opvarmet byggeplatform og konstruktionskammer opvarmet til 70 ° C – Minimeret vridning
  • Ekstremt stort installationsrum på 600x600x600 mm & industriel ekstruderguide for optimal kvalitet
  • Enkel styring via 4,3" touch-display og varmt filamenttørrekammer
  • Indstil nemt 3D-print efter en strømafbrydelse – spar omkostninger, tid og nerver

Flere detaljer

På Fjernlager

23580

85 000,00 DKK

inkl. moms
85000

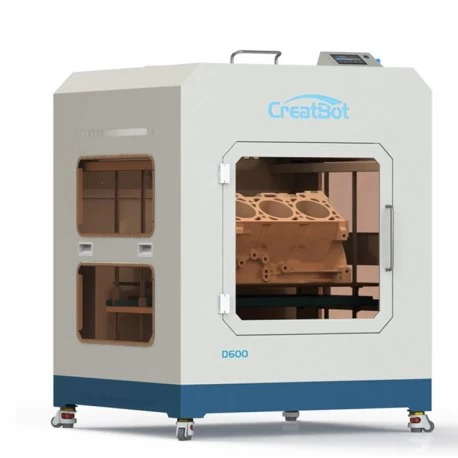

Industrial 3D printer CreatBot D600 Pro – 3D print very large and complex parts and objects

3D print with the CreatBot D600 Pro very large and complex parts and objects. The D600 Pro is an industrial high temperature 3D printer with a very high manufacturing quality and enormously large heated installation space (60x60x60 cm). The all-metal frame always offers you smooth running, precise linear guidance of the extruder and enormous noise reduction. Control the 3D printer comfortably and intuitively via the touch display and rely on reliably good production results thanks to BuildTak adhesives, heated building platform and heated filament drying chamber.

CreatBot D600 Pro improvements over D600

  • 25 control points check the setting of the building platform and level it automatically
  • Precise linear guide rail for stable and smooth running
  • Power failure protection automatically remembers the last position and continues 3D printing
  • Heated building platform made of glass and BuildTak adhesives
  • Easy control via the 4.3-inch touch screen
  • Construction chamber heated to 70 degrees minimizes warping
  • Filament drying chamber for nylon and other hydrophilic filaments

More features of the CreatBot D600 Pro:

  • Manufacturing temperature up to 350 °C
  • High precision 3D printing – up to 0.05 mm
  • Stable installation space made of steel guarantees reliable results
  • Very large installation space of 600 x 600 x 600 mm
  • Completely enclosed construction chamber for stable temperatures and noise reduction
  • Perfect for additive production with high-performance thermoplastics

Extruder temperature up to 350 °C

CreatBot is among the first to release a 350 °C ultra-high-temperature nozzle for the mass market. Furthermore, CreatBot owns exclusive innovative patents. The high temperature extruder allows you to process a wide range of filaments. The optimized blue cooling fins cool the heat brake reliably and efficiently. This keeps the heat from the hot end away from the extruder unit. You can also fine tune the nozzle height for maximum precession. It is possible to use custom designs for single, double and triple heads.

CreatBot D600 All Metal Head

Metal Hotend IconAllmetalhotend, more durable

350°C Hotend Icon350°Csupport more supplies

Nozzle Height Adjustable IconNozzle heightadjustable

Three Nozzle IconDirectHeadDriving


High 3D printing precision

The high precision of the 3D prints is made possible by the constant research and development of the extruder feed system. With this system you can achieve high resolutions of up to 0.05 mm. In addition, it enables consistent material extrusion without the dreaded clogging of the nozzle.

Precision up to: 0.05 mm Production speed up to: 200mm/s


Stability of steel frame

The all-metal steel frame provides high and continuous stability for 3D printing. In addition, it considerably extends the product life cycle of the 3D printer. The optimization and cooperation of the overall structure ensures sustainable and efficient operation. In the meantime, the first series of CreatBot 3D printers has been working continuously and reliably for more than 5 years and more than 8000 hours.

CreatBot D600 All Metal Chassis

Large installation space

The CreatBot D600 Pro is a true industrial 3D printer. 3D print with it extremely large objects and components of up to 600*600*600 mm. Its installation space is 30 times larger than any other ordinary 3D printer in today's mass market.

CreatBot D600 – Very large build size: 600*600*600 mm

CreatBot D600 Large Build Size Printer

Completely closed construction chamber

The fully enclosed building chamber keeps all environmental influences away from your 3D prints. This minimizes warping and keeps moisture out. So you can 3D print without worries. Furthermore, the closed design reduces noise and keeps the building temperature constant.

CreatBot D00 Fully Enclosed Chamber

Automatic levelling of the building platform – Optimum setting

Control the CreatBot D600 Pro and automatically level its building platform. Over 25 measuring points, the BL sensor measures the distance between the building platform and the extruder unit. It stores the individual distances at the different points of the platform. Based on this information, this 3D printer automatically compensates for any unevenness.

CreatBot D600 Auto leveling platform

Precise linear guide rail

Thanks to the precise linear rail structure you can 3D print models with a very high accuracy. Finish with 4 to 5 times more accuracy additive than ordinary mass market 3D printers. This rugged industrial design delivers superior smoothness and accurate filament feed. Produce large and complex models perfectly and reliably with the CreatBot D600 Pro 3D printer.

CreatBot D600 Linear Guide Rail

Power Failure & Filament Recognition

The CreatBot D600 Pro 3D printer automatically saves the current position and status of your 3D prints. It lowers the building platform and extends the filament when the machine is suddenly turned off or the power fails. This means you can 3D print many hours of 3D reliably and repeatedly. Gone are the days when you wasted your time, filament and money on aborted 3D prints.

CreatBot D600 Filament Detection


Power Outage Restored Video



Filament Detection Video


Efficient building platform – Good material adhesion & warping minimized

The surface of the building platform is coated with BuildTak. Your 3D print adheres reliably to this coating. The build platform conducts and distributes heat evenly and quickly. 3D prints with high thermal efficiency. Choose the setting parameters so that your D600 Plus switches off the heating of the lower layers after a few layers.

CreatBot D600 Efficient Platform

Intuitive touch screen operation

Control this 3D printer from its easy-to-use 4.3" touch screen. One-key command heats the D600 Pro, starts production jobs and moves the extruder head to the home position. In addition, there are many other intelligent setting options waiting for you.

CreatBot D600 Touch Screen

MORE FEATURES

CreatBot D600 Hot Air Chamber

Additional innovative features of the CreatBot D600 Pro

Compared to its predecessor, the CreatBot D600 Pro has many smart and innovative features.

Heated installation space – 70 °C Pro minimize warping

Due to the actively heated installation space, the CreatBot D600 Pro guarantees a constant installation space temperature. Make sure your model doesn't deform during 3D printing – warping is a thing of the past.

CreatBot D600 Filaments Drying Room

Dry and heated storage room for your filament

Store your hydrophilic filament in a dry and heated storage room. This guarantees you a top workmanship of water absorbing materials such as nylon or PC. To minimize water absorption, set the chamber temperature between 45°C and 65°C. Keep your filaments dry!


High quality filament

Process the original CreatBot filaments or PrimaCreator's high quality and affordable alternatives.

3D print these materials on the CreatBot D600 Pro:
  • PLA
  • ABS
  • Carbon Fiber
  • Wood
  • Nylon
  • PC
  • PTEG
  • HIPS
  • PP
  • Flexible
  • TPU
  • PVA and more

Use cases

Realize large and complex components with the CreatBot D600 Pro. The following models were commissioned by the cultural heritage organisation. They are 3D-printed on the D600 Pro with a 5 kg PLA roll within 80 hours. All 3D prints come out of the 3D printer as shown and do not need to be reworked.

CreatBot D600 彩色触摸屏图

Buy the industrial 3D printer CreatBot D600 Pro and Additive Manufacture very large and complex parts and objects.

Mærke CreatBot
Creatbot / Creatbot / Creatbot / Creatbot / Creatbot / Creatbot / Creatbot / Creatbot / Creatbot / Creatbot / Creatbot / Creatbot /

Skriv bedømmelse

Skriv bedømmelse

PRINTING
Print Technology: Fused Deposition Modeling
Build Volume: 600*600*600mm
Number of Nozzles: Double
Resolution: 0.05mm
Layer Resolution: 0.05mm
Filament Diameter: 3.0mm (1.75mm optional)
Filament Compatibility: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, etc.
Nozzle Diameter: 0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
Print File Type: GCO, GCODE

TEMPERATURE
Ambient Operating Temperature: 15-32°C
Max. Nozzle Temperature: 350°C
Max. Bed Temperature: 100°C
Max. Chamber Temperature: 70°C D600 Pro
Filaments Drying Temperature: 45°C / 65°C D600 Pro

SPEED
Best Printing speed: 45mm/s
Max. Printing speed: 120mm/s
Max. traveling speed: 200mm/s

MECHANICAL
Construction: Power-Coated Steel, Aluminum Casting for Motion Components, POM
Build Plate: Tempered glass Panel
Build Plate Leveling: "Factory Leveled, Adjust Manually
Automatic D600 Pro"
Extruder: Geared motor (1:10 rate)
Stepper Motors: 1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision: 5.08 Microns
Z Positioning Precision: 1.25 Microns

ELECTRICAL
Power Requirements: 100-240V, 50-60Hz, 20 Am needed
Max. Power: 4000W D600 Pro
Screen: 4.3" Touch Screen with Multi-language
Control Chip: ATmega 2560
Storage Media: SD Card
Connectivity: USB

SOFTWARE
Software Bundle: CreatWare Multi-language
Supported File Types: STL, OBJ, AMF
Operating Systems: Windows (7,8,10), Mac OS X

SPECIAL FUNCTION
Outage Restored: Sava data when power is off
Filament Detection: Pause printing when filament run out
Automatic Shut-down: Turn off the power automatically when printing is complete

SIZE & WEIGHT
Product Dimensions & Weight: 915*845*1085mm 125Kg
Packing Size & Weight: 1000*1030*1360mm 190Kg (Pallet)
